RackStation RS822RP+

Reliable data management for remote and branch offices
An all-in-one edge storage solution
The compact 1U 4-bay Synology RackStation RS822RP+/RS822+ with its storage and connectivity expandability coupled with the powerful Synology DiskStation Manager (DSM) operating system is an ideal edge storage solution for branch offices and small and medium-sized businesses.

Performance

2103/1074 MB/s sequential read/write throughput2

Scalability

Scale up to 8 drives with Synology Expansion Unit RX4183

Connectivity

Built-in 4 x 1GbE ports with 10/25 GbE expansion option4

Memory

Up to 32 GB DDR4 ECC
Hardware Specs
Hardware Specifications
RS822RP+
RS822+
CPU CPU Model AMD Ryzen V1500B AMD Ryzen V1500B
CPU Quantity 1 1
CPU Core 4 4
CPU Architecture 64-bit 64-bit
CPU Frequency 2.2 GHz 2.2 GHz
Hardware Encryption Engine
Memory System Memory 2 GB DDR4 ECC SODIMM 2 GB DDR4 ECC SODIMM
Memory Module Pre-installed 2 GB (2 GB x 1) 2 GB (2 GB x 1)
Total Memory Slots 2 2
Maximum Memory Capacity 32 GB (16 GB x 2) 32 GB (16 GB x 2)
Notes
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations.
Storage Drive Bays 4 4
Maximum Drive Bays with Expansion Unit 8 (RX418 x 1) 8 (RX418 x 1)
Drive Type (See all supported drives)
  • 3.5″ SATA HDD
  • 2.5″ SATA SSD
  • 3.5″ SATA HDD
  • 2.5″ SATA SSD
Hot Swappable Drive*
External Ports RJ-45 1GbE LAN Port 4 4
USB 3.2 Gen 1 Port 2 2
Expansion Port 1 1
Expansion Port Type eSATA eSATA
Notes This device’s 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
PCIe PCIe Expansion 1 x Gen3 x8 slot (x4 link) 1 x Gen3 x8 slot (x4 link)
Appearance Form Factor (RU) 1U 1U
Size (Height x Width x Depth) 44 mm x 480 mm x 518.6 mm 44 mm x 480 mm x 492.6 mm
Weight 8.0 kg 6.4 kg
Rack Installation Support* 4-post 19″ rack (Synology Rail Kit – RKM114/RKS-02) 4-post 19″ rack (Synology Rail Kit – RKM114/RKS-02)
Notes The rail kit is sold separately
Others System Fan 40 mm x 40 mm x 2 pcs 40 mm x 40 mm x 3 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Power Recovery
Noise Level* 38.8 dB(A) 27.4 dB(A)
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / Adapter 150 watts 150 watts
Redundant Power Supply –
AC Input Power Voltage 100 V to 240 V AC 100 V to 240 V AC
Power Frequency 50/60 Hz, Single Phase 50/60 Hz, Single Phase
Power Consumption* 47.69 watts (Access)
16.7 watts (HDD Hibernation)		 47.69 watts (Access)
16.7 watts (HDD Hibernation)
British Thermal Unit 162.83 BTU/hr (Access)
57.02 BTU/hr (HDD Hibernation)		 162.83 BTU/hr (Access)
57.02 BTU/hr (HDD Hibernation)
Notes
  • For more information on how power consumption is measured, refer to this article.
  • Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature Operating Temperature 0°C to 35°C (32°F to 95°F) 0°C to 35°C (32°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F) -20°C to 60°C (-5°F to 140°F)
Operating Humidity 8% to 80% RH 8% to 80% RH
Storage Humidity 5% to 95% RH 5% to 95% RH
Certification
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • EAC
  • CCC
  • KC
  • BIS
  • UL
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • EAC
  • CCC
  • KC
  • UL
Warranty 3-year hardware warranty, extendable to 5 years with EW202 or Extended Warranty Plus 3-year hardware warranty, extendable to 5 years with EW202 or Extended Warranty Plus
Notes
  • The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
  • Extended Warranty Plus is only available in Europe and North America. EW201/EW202 is only available in Asia, Africa, and Oceania. For exact availability information please visit their respective websites.
Environment RoHS Compliant RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 2
  • Quick Installation Guide X 1
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 1
  • Quick Installation Guide X 1
Optional Accessories
Notes
  • Certain items may not be available in your location. Please contact your local distributors for more information.
  • Upgrade to DSM 7.2-64551 or later before installing the M2D18.
Software Specs
DSM Specifications
RS822RP+
RS822+
Storage Management Maximum Single Volume Size 108 TB 108 TB
Maximum Internal Volume Number 64 64
SSD Read/Write Cache (Determining cache size)
SSD TRIM
Supported RAID Type
  • Synology Hybrid RAID
  • Basic
  • JBOD
  • RAID 0
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
  • Synology Hybrid RAID
  • Basic
  • JBOD
  • RAID 0
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
RAID Migration
  • Basic to RAID 1
  • Basic to RAID 5
  • RAID 1 to RAID 5
  • RAID 5 to RAID 6
  • Basic to RAID 1
  • Basic to RAID 5
  • RAID 1 to RAID 5
  • RAID 5 to RAID 6
Volume Expansion with Larger HDDs
  • Synology Hybrid RAID
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
  • Synology Hybrid RAID
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
Volume Expansion by Adding a HDD
  • Synology Hybrid RAID
  • JBOD
  • RAID 5
  • RAID 6 (with Expansion Unit)
  • Synology Hybrid RAID
  • JBOD
  • RAID 5
  • RAID 6 (with Expansion Unit)
Global Hot Spare Supported RAID Type
  • Synology Hybrid RAID
  • RAID 1
  • RAID 5
  • RAID 6 (with Expansion Unit)
  • RAID 10 (with Expansion Unit)
  • Synology Hybrid RAID
  • RAID 1
  • RAID 5
  • RAID 6 (with Expansion Unit)
  • RAID 10 (with Expansion Unit)
Notes
  • Each internal volume (may consist of multiple drives) is expandable up to 108TB.
  • Actual maximum storage pool and volume sizes depend on drive sizes used, the number of drive bays available, and the RAID configuration.
  • Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored.
File System Internal Drives
  • Btrfs
  • ext4
  • Btrfs
  • ext4
External Drives
  • Btrfs
  • ext4
  • ext3
  • FAT32
  • NTFS
  • HFS+
  • exFAT
  • Btrfs
  • ext4
  • ext3
  • FAT32
  • NTFS
  • HFS+
  • exFAT
File Services File Protocol
  • SMB
  • AFP
  • NFS
  • FTP
  • WebDAV
  • Rsync
  • SMB
  • AFP
  • NFS
  • FTP
  • WebDAV
  • Rsync
Maximum Number of SMB Connections (FSCT-Based) 130 130
Windows Access Control List (ACL) Integration
NFS Kerberos Authentication
Notes
  • Connection value of this model is tested with Synology SATA HDD fully populated and all onboard network ports
  • Models with expandable memory are tested with the maximum supported quantity installed.
  • SMB performance was evaluated using Microsoft File Server Capacity Tool (FSCT) version 1.3, with the following configuration:
    • Test workload: HomeFolder scenario provided by the FSCT tool
    • Test duration: 600 seconds
    • Domain controller & FSCT controller: Windows Server 2022
    • FSCT clients: 8 × Windows 10 machines
    • SMB feature: Directory leasing enabled
Account & Shared Folder Maximum Local User Accounts 1,024 1,024
Maximum Local Groups 256 256
Maximum Shared Folder 256 256
Maximum Shared Folder Sync Tasks 8 8
Hybrid Share Maximum Hybrid Share Folders 10 10
Hyper Backup Folder and Package Backup
Entire System Backup
Notes Full-system backup requires DSM 7.2 or later.
High Availability Synology High Availability
Log Center
Syslog Events per Second 800 800
Virtualization VMware vSphere ESXi 8.0 U2, ESXi 8.0 U1, ESXi 8.0, ESXi 7.0 U3, ESXi 7.0 U2, ESXi 7.0 U1, ESXi 7.0, ESXi 6.7 U3, ESXi 6.7 U2, ESXi 6.7 U1, ESXi 6.7, ESXi 6.5 U3, ESXi 6.5 U2, ESXi 6.5 U1, ESXi 6.5 ESXi 8.0 U2, ESXi 8.0 U1, ESXi 8.0, ESXi 7.0 U3, ESXi 7.0 U2, ESXi 7.0 U1, ESXi 7.0, ESXi 6.7 U3, ESXi 6.7 U2, ESXi 6.7 U1, ESXi 6.7, ESXi 6.5 U3, ESXi 6.5 U2, ESXi 6.5 U1, ESXi 6.5
Microsoft Hyper-V Windows Server 2022, Windows Server 2016 Windows Server 2022, Windows Server 2016
Citrix XenServer XenServer 8, Citrix Hypervisor 8.2 LTSR CU1 XenServer 8, Citrix Hypervisor 8.2 LTSR CU1
OpenStack Cinder Cinder
General Specifications Supported Protocols SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Supported Browsers
  • Chrome
  • Firefox
  • Edge
  • Safari
  • Chrome
  • Firefox
  • Edge
  • Safari
Supported Language English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文 English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
Notes For an updated list of supported browser versions, check the DSM Technical Specifications.
Central Management System
Synology AI Console
Third-Party AI Model Integration
Maximum De-Identification Rate 130 words per second 130 words per second
Notes
  • De-identification performance measurement: Filters for Credit Card Numbers, IBAN, Individual Taxpayer Identification Number, SSN, and Names applied to a 4,355-word English text.
  • To enable de-identification, your device must have at least 8 GB of memory and Container Manager installed.
Synology Chat
Maximum Number of Users 150 150
Notes
  • Measured with simulated users, each with an average record of 20,000 messages, emojis, or stickers. The required server response time is below ten seconds.
  • Models with expandable memory are tested with the maximum supported quantity installed.
Download Station
Maximum Concurrent Download Tasks 80 80
SAN Manager
Maximum iSCSI Target Number 64 64
Maximum LUN 128 128
LUN Clone/Snapshot, Windows ODX
Synology MailPlus / MailPlus Server
Free Email Accounts 5 (Additional accounts require purchase of licenses) 5 (Additional accounts require purchase of licenses)
Maximum Number of Users 290 290
Notes
  • The suggested maximum number of users is based on the following workload: 20% of users with a 20,000 item mailbox randomly performing actions and receiving 240 emails per day, and 80% of users receiving 20 emails per day. Learn more
  • Models with SSD support are tested with a single SSD volume.
  • Models with expandable memory are tested with the maximum supported quantity installed. Learn more about memory requirements.
  • Operating in high-availability mode will incur additional overhead.
  • Features enabled during evaluation: anti-spam, anti-virus, DNSBL, greylist, content scanning, and full-text search (English).
Media Server
DLNA Compliance
Synology Photos
Facial Recognition
Object Recognition
Notes Object recognition requires an upgrade of memory capacity to a minimum of 4 GB.
Snapshot Replication
Maximum Snapshots per Shared Folder 256 256
Maximum of System Snapshots 4,096 4,096
Surveillance Station
Default Licenses 2 (Additional cameras require purchase of licenses) 2 (Additional cameras require purchase of licenses)
Maximum IP Cameras and Total FPS (H.264)
  • 1080p: 40 channels, 800 FPS
  • 3M: 35 channels, 350 FPS
  • 5M: 28 channels, 280 FPS
  • 4K: 17 channels, 170 FPS
  • 1080p: 40 channels, 800 FPS
  • 3M: 35 channels, 350 FPS
  • 5M: 28 channels, 280 FPS
  • 4K: 17 channels, 170 FPS
Maximum IP Cameras and Total FPS (H.265)
  • 1080p: 40 channels, 1200 FPS
  • 3M: 40 channels, 600 FPS
  • 5M: 40 channels, 480 FPS
  • 4K: 20 channels, 200 FPS
  • 1080p: 40 channels, 1200 FPS
  • 3M: 40 channels, 600 FPS
  • 5M: 40 channels, 480 FPS
  • 4K: 20 channels, 200 FPS
Notes
  • Performance figures are obtained from testing conducted with the device fully populated with drives, with their default memory configuration, and under a continuous recording setup. Actual system capabilities may vary based on configuration, drive performance, enabled features, and the presence of additional workloads.
  • Use NVR Selector to quickly find a suitable model based on your requirements.
  • The number of video channels that can be viewed simultaneously is double the maximum number of cameras for the same codec and resolution.
Synology Drive
Maximum Number of Users 250 250
Maximum Number of Hosted Files 5,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above) 5,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
Notes
  • The suggested maximum number of users is based on the following workload: 20% of users randomly perform file operations (upload, download, move, and delete), and 80% of users are logged in but idle. Learn more
  • Models with SSD support are tested with a single SSD volume.
  • Models with expandable memory are tested with the maximum supported quantity installed.
  • Exceeding the recommended numbers above will not block application operations, but may result in longer response time.
  • Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.
Synology Office
Maximum Number of Users 240 240
Notes
  • The suggested maximum number of users is based on the following workload: 20% of users are executing random actions at an average of 30-second intervals, and 80% of users are logged in and viewing a file. Learn more
  • Models with SSD support are tested with a single SSD volume.
  • Models with expandable memory are tested with the maximum supported quantity installed.
  • Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Virtual Machine Manager
Recommended Virtual Machine Instances 8 (Learn more) 8 (Learn more)
Recommended Virtual DSM Number (Licenses required) 8 (including 1 Free License) 8 (including 1 Free License)
Notes The specifications vary depending on system configuration and memory size.
VPN Server
Maximum Connections 8 8

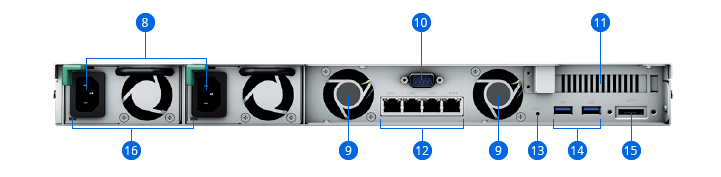

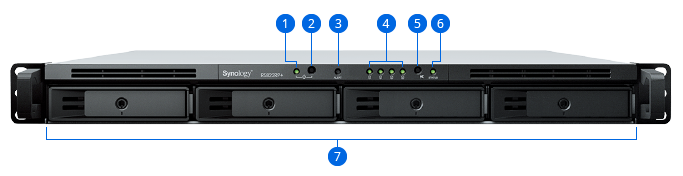

1
Power Indicator
2
Power Button
3
Alert Indicator
4
Drive Status Indicators
5
Mute Button
6
Status Indicator
7
Drive Trays
8
Power Ports
9
Fans
10
Console Port
11
PCI Express Expansion Slot
12
1GbE RJ-45 Ports
13
Reset Button
14
USB 3.2 Gen 1 Ports
15
eSATA Port
16
Redundant Power LEDs

Related products

RackStation RS3621RPxs

  • Intel® Xeon® D-1531 6-core 2.2 GHz
  • 4,718 MB/s seq. read 189,098 4K random read IOPS2
  • Dual PCIe slots for 10GbE or NVMe cache
  • Up to 36 drive bays with RX1217RP/RX1217

RackStation RS3618xs

  • quad-core up to 2.7GHz
  • 8GB DDR4 ECC UDIMM, up to 64GB
  • 4 x 1GbE port, optional 10GbE NIC support
  • Up to 36 drives with RX1217/RX1217RP

DiskStation DS425+

4 Bays
  • Up to 80 TB of raw storage1,2
  • Built-in 2.5GbE port and over 278/281 MB/s sequential read/write3
  • Back up multiple endpoints, manage 40 IP cameras4, or safely sync and share files across sites

DiskStation DS223j

  • Anywhere, anytime secure access to all your data.
  • Safely access and share files and media from anywhere.
  • Hardware and software engineered to protect your data — trusted by millions.
