Re-seller register

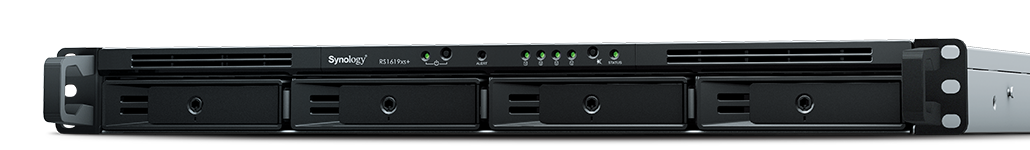

RackStation RS1619xs+

1U rackmount flagship aims for file collaboration and high-performance computation
Fast storage with outstanding computing power
RS1619xs+ is a high-performance and scalable 1U rackmount NAS designed with upgradable memory and M.2 SSD cache configuration to meet the needs of modern businesses that require a flexible, reliable, and efficient storage solution.

CPU

Quad-core up to 2.7GHz

RAM options

8GB DDR4 UDIMM, up to 64GB

High Performance

1,523 MB/s sequential reading, 162,097 iSCSI random read IOPS

Scalability

Up to 16 drives with one RX1217/RX1217RP2
Hardware Specifications
CPU
 CPU Model Intel Xeon D-1527
CPU Quantity 1
CPU Core 4
CPU Architecture 64-bit
CPU Frequency 2.2 (base) / 2.7 (turbo) GHz
Hardware Encryption Engine
Memory
 System Memory 8 GB DDR4 ECC UDIMM
Memory Module Pre-installed 8 GB (8 GB x 1)
Total Memory Slots 4
Maximum Memory Capacity 64 GB (16 GB x 4)
Notes
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • For more information on the recommended memory configurations, visit here.
Storage
 Drive Bays 4
Maximum Drive Bays with Expansion Unit 16 (RX1217 x 1)
M.2 Drive Slots 2 (NVMe & SATA)
Drive Type (See all supported drives)
  • 3.5″ SATA HDD
  • 2.5″ SATA HDD
  • 2.5″ SATA SSD
  • M.2 2280 NVMe & SATA SSD
Hot Swappable Drive*
Notes The hot swappable drive feature is not supported by M.2 SSD slots.
External Ports
 RJ-45 1GbE LAN Port 4
USB 3.2 Gen 1 Port 2
Expansion Port 1
Expansion Port Type Infiniband
PCIe
 PCIe Expansion 1 x Gen3 x8 slot (x8 link)
Appearance
 Form Factor (RU) 1U
Size (Height x Width x Depth) 44 mm x 480 mm x 518.6 mm
Weight 8.16 kg
Rack Installation Support* 4-post 19″ rack (Synology Rail Kit – RKM114/RKS-02)
Notes The rail kit is sold separately
Others
 System Fan 40 mm x 40 mm x 2 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Power Recovery
Noise Level* 39.3 dB(A)
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / Adapter 150 watts
Redundant Power Supply
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 68.68 watts (Access)
34.78 watts (HDD Hibernation)
British Thermal Unit 234.35 BTU/hr (Access)
118.67 BTU/hr (HDD Hibernation)
Notes
  • Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
  • Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature
 Operating Temperature 5°C to 35°C (40°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Operating Humidity 8% to 80% RH
Storage Humidity 5% to 95% RH
Certification
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • EAC
  • CCC
  • KC
  • BIS
Warranty
 5 Years
Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment
 RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 2
  • Quick Installation Guide X 1
Optional Accessories
Notes
  • Certain items may not be available in your location. Please contact your local distributors for more information.
  • All memory modules will operate at the maximum frequency specified by the CPU manufacturer.
DSM Specifications
Storage Management
 Maximum Single Volume Size
  • 1 PB (64 GB memory required, for RAID 6 groups only)
  • 200 TB (32 GB memory required)
  • 108 TB
Maximum Internal Volume Number 256
SSD Read/Write Cache (Determining cache size)
SSD TRIM
RAID Group
Supported RAID Type
  • RAID F1
  • Basic
  • JBOD
  • RAID 0
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
RAID Migration
  • Basic to RAID 1
  • Basic to RAID 5
  • RAID 1 to RAID 5
  • RAID 5 to RAID 6
Volume Expansion with Larger HDDs
  • RAID F1
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
Volume Expansion by Adding a HDD
  • RAID F1
  • JBOD
  • RAID 5
  • RAID 6 (with Expansion Unit)
Global Hot Spare Supported RAID Type
  • RAID F1
  • RAID 1
  • RAID 5
  • RAID 6 (with Expansion Unit)
  • RAID 10 (with Expansion Unit)
Notes
  • Volumes over 108 TB require 32 GB of memory or more.
  • Actual maximum storage pool and volume sizes depend on drive sizes used, the number of drive bays available, and the RAID configuration.
  • Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored.
  • When Peta Volume is enabled, validated services and packages are required. Please refer to this article for more information on limitations.
File System
 Internal Drives
  • Btrfs
  • ext4
External Drives
  • Btrfs
  • ext4
  • ext3
  • FAT32
  • NTFS
  • HFS+
  • exFAT
File Services
 File Protocol
  • SMB
  • AFP
  • NFS
  • FTP
  • WebDAV
  • Rsync
Maximum Number of SMB Connections (FSCT-Based) 400
Windows Access Control List (ACL) Integration
NFS Kerberos Authentication
Notes
  • Connection value of this model is tested with Synology SATA SSD fully populated and up to four 10GbE network ports
  • Models with expandable memory are tested with the maximum supported quantity installed.
  • SMB performance was evaluated using Microsoft File Server Capacity Tool (FSCT) version 1.3, with the following configuration:
    • Test workload: HomeFolder scenario provided by the FSCT tool
    • Test duration: 600 seconds
    • Domain controller & FSCT controller: Windows Server 2022
    • FSCT clients: 8 × Windows 10 machines
    • SMB feature: Directory leasing enabled
Account & Shared Folder
 Maximum Local User Accounts 2,048
Maximum Local Groups 512
Maximum Shared Folder 512
Maximum Shared Folder Sync Tasks 12
Hybrid Share
 Maximum Hybrid Share Folders 15
Hyper Backup
 Folder and Package Backup
Entire System Backup
Notes Full-system backup requires DSM 7.2 or later.
High Availability
 Synology High Availability
Log Center
 Syslog Events per Second 3,000
Virtualization
 VMware vSphere ESXi 8.0 U2, ESXi 8.0 U1, ESXi 8.0, ESXi 7.0 U3, ESXi 7.0 U2, ESXi 7.0 U1, ESXi 7.0, ESXi 6.7 U3, ESXi 6.7 U2, ESXi 6.7 U1, ESXi 6.7, ESXi 6.5 U3, ESXi 6.5 U2, ESXi 6.5 U1, ESXi 6.5
Microsoft Hyper-V Windows Server 2022, Windows Server 2019, Windows Server 2016
Citrix XenServer XenServer 7
OpenStack Cinder
General Specifications
 Supported Protocols SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Supported Browsers
  • Chrome
  • Firefox
  • Edge
  • Safari
Supported Language English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
Notes For an updated list of supported browser versions, check the DSM Technical Specifications.
Add-on Packages view the complete package list
Central Management System
Synology AI Console
 Third-Party AI Model Integration
Maximum De-Identification Rate 400 words per second
Notes
  • De-identification performance measurement: Filters for Credit Card Numbers, IBAN, Individual Taxpayer Identification Number, SSN, and Names applied to a 4,355-word English text.
  • To enable de-identification, your device must have at least 8 GB of memory and Container Manager installed.
Synology Chat
 Maximum Number of Users 400
Notes
  • Measured with simulated users, each with an average record of 20,000 messages, emojis, or stickers. The required server response time is below ten seconds.
  • Models with expandable memory are tested with the maximum supported quantity installed.
Download Station
 Maximum Concurrent Download Tasks 80
SAN Manager
 Maximum iSCSI Target Number 64
Maximum LUN 128
LUN Clone/Snapshot, Windows ODX
Synology MailPlus / MailPlus Server
 Free Email Accounts 5 (Additional accounts require purchase of licenses)
Maximum Number of Users 800
Notes
  • The suggested maximum number of users is based on the following workload: 20% of users with a 20,000 item mailbox randomly performing actions and receiving 240 emails per day, and 80% of users receiving 20 emails per day. Learn more
  • Models with SSD support are tested with a single SSD volume.
  • Models with expandable memory are tested with the maximum supported quantity installed. Learn more about memory requirements.
  • Operating in high-availability mode will incur additional overhead.
  • Features enabled during evaluation: anti-spam, anti-virus, DNSBL, greylist, content scanning, and full-text search (English).
Media Server
 DLNA Compliance
Synology Photos
 Facial Recognition
Object Recognition
Snapshot Replication
 Maximum Snapshots per Shared Folder 256
Maximum of System Snapshots 4,096
Surveillance Station
 Default Licenses 2 (Additional cameras require purchase of licenses)
Maximum IP Cameras and Total FPS (H.264)
  • 1080p: 75 channels, 1050 FPS
  • 3M: 60 channels, 600 FPS
  • 5M: 40 channels, 400 FPS
  • 4K: 28 channels, 280 FPS
Maximum IP Cameras and Total FPS (H.265)
  • 1080p: 75 channels, 2250 FPS
  • 3M: 75 channels, 1125 FPS
  • 5M: 70 channels, 700 FPS
  • 4K: 49 channels, 490 FPS
Notes
  • Performance figures are obtained from testing conducted with the device fully populated with drives, with their default memory configuration, and under a continuous recording setup. Actual system capabilities may vary based on configuration, drive performance, enabled features, and the presence of additional workloads.
  • Use NVR Selector to quickly find a suitable model based on your requirements.
  • The number of video channels that can be viewed simultaneously is double the maximum number of cameras for the same codec and resolution.
Synology Drive
 Maximum Number of Users 700
Maximum Number of Hosted Files 5,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
Notes
  • The suggested maximum number of users is based on the following workload: 20% of users randomly perform file operations (upload, download, move, and delete), and 80% of users are logged in but idle. Learn more
  • Models with SSD support are tested with a single SSD volume.
  • Models with expandable memory are tested with the maximum supported quantity installed.
  • Exceeding the recommended numbers above will not block application operations, but may result in longer response time.
  • Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.
Synology Office
 Maximum Number of Users 700
Notes
  • The suggested maximum number of users is based on the following workload: 20% of users are executing random actions at an average of 30-second intervals, and 80% of users are logged in and viewing a file. Learn more
  • Models with SSD support are tested with a single SSD volume.
  • Models with expandable memory are tested with the maximum supported quantity installed.
  • Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Virtual Machine Manager
 Recommended Virtual Machine Instances 8 (Learn more)
Recommended Virtual DSM Number (Licenses required) 8 (including 1 Free License)
Notes The specifications vary depending on system configuration and memory size.
VPN Server
 Maximum Connections 12

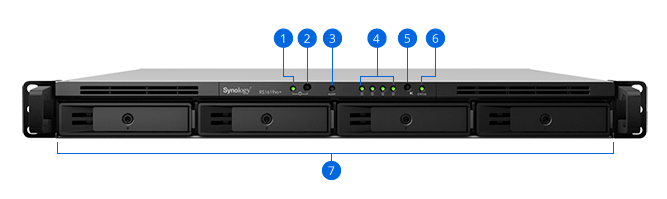

1
Power indicator
2
Power button
3
Alert indicator
4
Drive status indicator
5
Beep off button
6
Status indicator
7
Drive tray

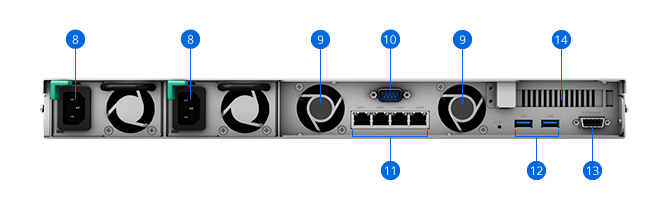

8
Power port
9
System fan
10
Console port
11
1GbE RJ-45 port
12
USB 3.0 port
13
Expansion port
14
PCIe expansion slot
