Re-seller register

DiskStation® DS3622xs+

Powerful and high-capacity storage that fits in any environment
High-performance mass storage
The 12-bay Synology DS3622xs+ is a powerhouse NAS capable of fitting into small and medium business environments with intensive and multi-user workloads. Its high capacity, scalability, and processing power make it ideal for VM and container storage, for lightning-fast file sharing, and as a network video recorder for large surveillance deployments. It comes with powerful storage management, file syncing, surveillance, and backup software, and is suitable for editing high-quality video.
cpu

CPU

Six-core Intel® Xeon® processor

Throughput

4,719 MB/s seq. read 260,691 4K random read IOPS1

Memory

16 GB DDR4 ECC, expandable to 48 GB

Scalability

Expand to 36 drives with two DX1222 expansion units
CPU
 CPU Model Intel Xeon D-1531
CPU Quantity 1
CPU Core 6
CPU Architecture 64-bit
CPU Frequency 2.2 (base) / 2.7 (turbo) GHz
Hardware Encryption Engine ✔️
Memory
 System Memory 16 GB DDR4 ECC SODIMM
Memory Module Pre-installed 16 GB (8 GB x 2)
Total Memory Slots 4
Maximum Memory Capacity 48 GB (8 GB x 2 + 16 GB x 2)
Notes
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations.
Storage
 Drive Bays 12
Maximum Drive Bays with Expansion Unit 36 (DX1222 x 2)
Drive Type (See all supported drives)
  • 3.5″ SATA HDD
  • 2.5″ SATA HDD
  • 2.5″ SATA SSD
Hot Swappable Drive* ✔️
Notes Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability.
External Ports
 RJ-45 1GbE LAN Port 2
RJ-45 10GbE LAN Port 2
Out-of-Band Management LAN Port 1
USB 3.2 Gen 1 Port 2
Expansion Port 2
Expansion Port Type Mini-SAS HD
Notes MTU value of 1GbE LAN port has a limit of 1500.
PCIe
 PCIe Expansion 1 x Gen3 x8 slot (x8 link)
Appearance
 Size (Height x Width x Depth) 270 mm x 300 mm x 340 mm
Weight 9.8 kg
Others
 System Fan 120 mm x 120 mm x 2 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Easy Replacement System Fan ✔️
Power Recovery ✔️
Noise Level* 25 dB(A)
Scheduled Power On / Off ✔️
Wake on LAN / WAN ✔️
Power Supply Unit / Adapter 550 watts
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 94.42 watts (Access)
54.33 watts (HDD Hibernation)
British Thermal Unit 322.39 BTU/hr (Access)
185.51 BTU/hr (HDD Hibernation)
Notes
  • Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
  • Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature
 Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Operating Humidity 8% to 80% RH
Storage Humidity 5% to 95% RH
Certification
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • EAC
  • KC
  • BIS
  • UL
Warranty
 5 Years
Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment
 RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 1
  • RJ-45 LAN Cable X 2
  • Quick Installation Guide X 1
Optional Accessories
Storage Management
 Maximum Single Volume Size
  • 200 TB (32 GB memory required)
  • 108 TB
Maximum Internal Volume Number 256
SSD Read/Write Cache (Determining cache size) ✔️
SSD TRIM ✔️
RAID Group ✔️
Supported RAID Type
  • RAID F1
  • Basic
  • JBOD
  • RAID 0
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
RAID Migration
  • Basic to RAID 1
  • Basic to RAID 5
  • RAID 1 to RAID 5
  • RAID 5 to RAID 6
Volume Expansion with Larger HDDs
  • RAID F1
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
Volume Expansion by Adding a HDD
  • RAID F1
  • JBOD
  • RAID 5
  • RAID 6
Global Hot Spare Supported RAID Type
  • RAID F1
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
Notes
  • Volumes over 108 TB require 32 GB of memory or more.
  • Actual maximum storage pool and volume sizes vary depending on drives used, the number of drive bays available, and the RAID configuration.
  • Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored.
File System
 Internal Drives
  • Btrfs
  • ext4
External Drives
  • Btrfs
  • ext4
  • ext3
  • FAT32
  • NTFS
  • HFS+
  • exFAT
File Services
 File Protocol
  • SMB
  • AFP
  • NFS
  • FTP
  • WebDAV
  • Rsync
Maximum Number of SMB Connections (FSCT-Based) 600
Windows Access Control List (ACL) Integration ✔️
NFS Kerberos Authentication ✔️
Notes
  • Connection value of this model is tested with Synology SATA SSD fully populated and up to four 10GbE network ports
  • Models with expandable memory are tested with the maximum supported quantity installed.
  • SMB performance was evaluated using Microsoft File Server Capacity Tool (FSCT) version 1.3, with the following configuration:
    • Test workload: HomeFolder scenario provided by the FSCT tool
    • Test duration: 600 seconds
    • Domain controller & FSCT controller: Windows Server 2022
    • FSCT clients: 8 × Windows 10 machines
    • SMB feature: Directory leasing enabled
Account & Shared Folder
 Maximum Local User Accounts 5,120
Maximum Local Groups 512
Maximum Shared Folder 512
Maximum Shared Folder Sync Tasks 16
Hybrid Share
 Hybrid Share Folder Number 15
Hyper Backup
 Folder and Package Backup ✔️
Entire System Backup ✔️
Notes Full-system backup requires DSM 7.2 or later.
High Availability
 Synology High Availability ✔️
Log Center
 Syslog Events per Second 3,000
Virtualization
 VMware vSphere ESXi 8.0 U2, ESXi 8.0 U1, ESXi 8.0, ESXi 7.0 U3, ESXi 7.0 U2, ESXi 7.0 U1, ESXi 7.0, ESXi 6.7 U3, ESXi 6.7 U2, ESXi 6.7 U1, ESXi 6.7, ESXi 6.5 U3, ESXi 6.5 U2, ESXi 6.5 U1, ESXi 6.5
Microsoft Hyper-V Windows Server 2022
Citrix XenServer XenServer 8, Citrix Hypervisor 8.2 LTSR CU1
OpenStack Cinder
General Specifications
 Supported Protocols SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Supported Browsers
  • Chrome
  • Firefox
  • Edge
  • Safari
Supported Language English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
Notes For an updated list of supported browser versions, check the DSM Technical Specifications.
Add-on Packages view the complete package list
Central Management System
 ✔️
Synology AI Console
 Third-Party AI Model Integration ✔️
Maximum De-Identification Rate 600 words per second
Notes
  • De-identification performance measurement: Filters for Credit Card Numbers, IBAN, Individual Taxpayer Identification Number, SSN, and Names applied to a 4,355-word English text.
  • To enable de-identification, your device must have at least 8 GB of memory and Container Manager installed.
Synology Chat
 Suggested Users 500
Notes
  • Measured with simulated users, each with an average record of 20,000 messages, emojis, or stickers. The required server response time is below ten seconds.
  • Models with expandable memory are tested with the maximum supported quantity installed.
Download Station
 Maximum Concurrent Download Tasks 80
SAN Manager
 Maximum iSCSI Target Number 128
Maximum LUN 256
LUN Clone/Snapshot, Windows ODX ✔️
Synology MailPlus / MailPlus Server
 Free Email Accounts 5 (Additional accounts require purchase of licenses)
Suggested Users 1,300
Notes
  • The suggested maximum number of users is based on the following workload: 20% of users with a 20,000 item mailbox randomly performing actions and receiving 240 emails per day, and 80% of users receiving 20 emails per day. Learn more
  • Models with SSD support are tested with a single SSD volume.
  • Models with expandable memory are tested with the maximum supported quantity installed. Learn more about memory requirements.
  • Operating in high-availability mode will incur additional overhead.
  • Features enabled during evaluation: anti-spam, anti-virus, DNSBL, greylist, content scanning, and full-text search (English).
Media Server
 DLNA Compliance ✔️
Synology Photos
 Facial Recognition ✔️
Object Recognition ✔️
Snapshot Replication
 Maximum Snapshots per Shared Folder 512
Maximum of System Snapshots 16,384
Surveillance Station
 Default Licenses 2 (Additional cameras require purchase of licenses)
Suggested Maximum IP Cameras and Total FPS (H.264)
  • 1080p: 90 channels, 2250 FPS
  • 3M: 90 channels, 1500 FPS
  • 5M: 90 channels, 900 FPS
  • 4K: 55 channels, 550 FPS
Suggested Maximum IP Cameras and Total FPS (H.265)
  • 1080p: 90 channels, 2700 FPS
  • 3M: 90 channels, 2250 FPS
  • 5M: 90 channels, 1500 FPS
  • 4K: 90 channels, 1080 FPS
Notes
  • Performance figures are obtained from testing conducted with the device fully populated with drives, with their default memory configuration, and under a continuous recording setup. Actual system capabilities may vary based on configuration, drive performance, enabled features, and the presence of additional workloads.
  • Use NVR Selector to quickly find a suitable model based on your requirements.
  • The number of streams that can be viewed simultaneously is twice the suggested maximum number of cameras. For example, if the suggested maximum number of cameras for a model is 10 under H.264, 1080p, the model can support up to 20 streams of the same specification at the same time.
Synology Drive
 Suggested Users 1,100
Maximum Number of Hosted Files 15,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
Notes
  • The suggested maximum number of users is based on the following workload: 20% of users randomly perform file operations (upload, download, move, and delete), and 80% of users are logged in but idle. Learn more
  • Models with SSD support are tested with a single SSD volume.
  • Models with expandable memory are tested with the maximum supported quantity installed.
  • Exceeding the recommended numbers above will not block application operations, but may result in longer response time.
  • Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.
Synology Office
 Suggested Users 1,100
Notes
  • The suggested maximum number of users is based on the following workload: 20% of users are executing random actions at an average of 30-second intervals, and 80% of users are logged in and viewing a file. Learn more
  • Models with SSD support are tested with a single SSD volume.
  • Models with expandable memory are tested with the maximum supported quantity installed.
  • Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Virtual Machine Manager
 Recommended Virtual Machine Instances 12 (Learn more)
Recommended Virtual DSM Number (Licenses required) 12 (including 1 Free License)
Notes The specifications vary depending on system configuration and memory size.
VPN Server
 Maximum Connections 16

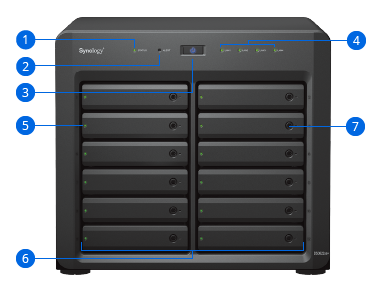

1
Status Indicator
2
Alert indicator
3
Power Button
4
LAN Indicators
5
Drive status indicator
6
Drive Trays
7
Drive Tray Locks

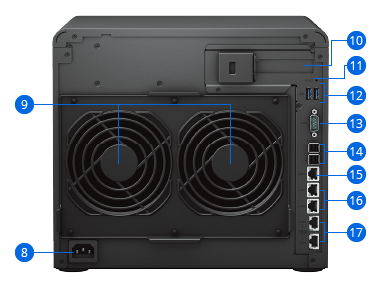

8
Power Port
9
System Fans
10
PCIe Expansion Slot
11
Reset Button
12
USB 3.2 Gen 1 port
13
Console Port
14
Expansion Ports
15
Management Port
16
1GbE RJ-45 Ports
17
10GbE RJ-45 Ports
