DiskStation DS1823xs+

Flexible large-scale storage for small and medium-sized businesses

Private data center on your desk

The DS1823xs+ is a powerful central storage server that can easily be deployed anywhere to provide shared data storage and sharing, endpoint and server backup, VM storage, surveillance management, and other business applications. It is perfect in settings where no dedicated server rack or data center is available.

Desktop-sized powerhouse

Over 3,100/2,600 MB/s seq. read/write,1 built-in 10GbE, and up to 160 TB raw storage2 before expansion.

Flexible configuration

Add up to 10 extra drive bays, 25GbE or Fibre Channel, and SSD cache volumes when needed.3

Versatile applications

Back up 300 endpoints, manage 75 IP cameras,4 or safely sync and share files between devices and sites.

CPU	CPU Model	AMD Ryzen V1780B
	CPU Quantity	1
	CPU Core	4
	CPU Architecture	64-bit
	CPU Frequency	3.35 (base) / 3.6 (turbo) GHz
	Hardware Encryption Engine	✔️
Memory	System Memory	8 GB DDR4 ECC SODIMM
	Memory Module Pre-installed	8 GB (8 GB x 1)
	Total Memory Slots	2
	Maximum Memory Capacity	32 GB (16 GB x 2)
	Notes	Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations.
Storage	Drive Bays	8
	Maximum Drive Bays with Expansion Unit	18 (DX517 x 2)
	M.2 Drive Slots	2 (NVMe)
	Drive Type (See all supported drives)	3.5″ SATA HDD 2.5″ SATA SSD M.2 2280 NVMe SSD
	Hot Swappable Drive*	✔️
	Notes	The hot swappable drive feature is not supported by M.2 SSD slots. Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability.

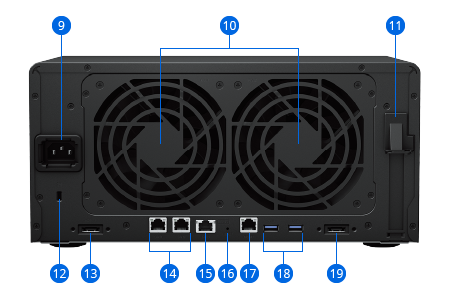

External Ports	RJ-45 1GbE LAN Port	2
	RJ-45 10GbE LAN Port	1
	Out-of-Band Management LAN Port	1
	USB 3.2 Gen 1 Port	3
	Expansion Port	2
	Expansion Port Type	eSATA
	Notes	This device’s 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
PCIe	PCIe Expansion	1 x Gen3 x8 slot (x4 link)
Appearance	Size (Height x Width x Depth)	166 mm x 343 mm x 243 mm
	Weight	6.2 kg
Others	System Fan	120 mm x 120 mm x 2 pcs
	Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
	Easy Replacement System Fan	✔️
	Brightness Adjustable Front LED Indicators	✔️
	Power Recovery	✔️
	Noise Level*	23.6 dB(A)
	Scheduled Power On / Off	✔️
	Wake on LAN / WAN	✔️
	Power Supply Unit / Adapter	250 watts
	AC Input Power Voltage	100V to 240V AC
	Power Frequency	50/60 Hz, Single Phase
	Power Consumption*	87.93 watts (Access) 28.37 watts (HDD Hibernation)
	British Thermal Unit	300.23 BTU/hr (Access) 96.87 BTU/hr (HDD Hibernation)
	Notes	For more information on how power consumption is measured, refer to this article. Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature	Operating Temperature	0°C to 40°C (32°F to 104°F)
	Storage Temperature	-20°C to 60°C (-5°F to 140°F)
	Operating Humidity	8% to 80% RH
	Storage Humidity	5% to 95% RH
Certification	FCC CE BSMI VCCI RCM EAC CCC KC BIS
Warranty	5 Years
	Notes	The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 Accessory Pack X 1 AC Power Cord X 1 RJ-45 LAN Cable X 2 Quick Installation Guide X 1
Optional Accessories	DDR4 ECC SODIMM: D4ES02-8G/D4ES01-16G Expansion Units: DX517 Enterprise Series 3.5″ SATA HDD: HAT5300 Series Plus Series 3.5″ SATA HDD: HAT3300 Series Enterprise Series 2.5″ SATA SSD: SAT5200 Series Enterprise Series M.2 2280 NVMe SSD: SNV3400 & SNV5400 Series 25GbE Network Interface Card: E25G30-F2 10GbE Network Interface Card: E10G30-F2/E10G30-T2/E10G18-T1


Storage Management	Maximum Single Volume Size	200 TB (32 GB memory required) 108 TB
	Maximum Internal Volume Number	256
	M.2 SSD Storage Pool Support*	✔️
	SSD Read/Write Cache (Determining cache size)	✔️
	SSD TRIM	✔️
	RAID Group	✔️
	Supported RAID Type	RAID F1 Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10
	RAID Migration	Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6
	Volume Expansion with Larger HDDs	RAID F1 RAID 1 RAID 5 RAID 6 RAID 10
	Volume Expansion by Adding a HDD	RAID F1 JBOD RAID 5 RAID 6
	Global Hot Spare Supported RAID Type	RAID F1 RAID 1 RAID 5 RAID 6 RAID 10
	Notes	Volumes over 108 TB require 32 GB of memory or more. Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored. Creating M.2 storage pools requires the use of Synology-verified SSDs, which are rigorously tested under extreme temperature conditions. Thermal parameters for SSDs and NAS units are fine-tuned to ensure optimal management of thermal conditions under I/O-intensive environments. (Learn more)
File System	Internal Drives	Btrfs ext4
	External Drives	Btrfs ext4 ext3 FAT32 NTFS HFS+ exFAT
File Services	File Protocol	SMB AFP NFS FTP WebDAV Rsync
	Maximum Number of SMB Connections (FSCT-Based)	340
	Windows Access Control List (ACL) Integration	✔️
	NFS Kerberos Authentication	✔️
	Notes	Connection value of this model is tested with Synology SATA SSD fully populated and up to four 10GbE network ports Models with expandable memory are tested with the maximum supported quantity installed. SMB performance was evaluated using Microsoft File Server Capacity Tool (FSCT) version 1.3, with the following configuration: Test workload: HomeFolder scenario provided by the FSCT tool Test duration: 600 seconds Domain controller & FSCT controller: Windows Server 2022 FSCT clients: 8 × Windows 10 machines SMB feature: Directory leasing enabled
Account & Shared Folder	Maximum Local User Accounts	2,048
	Maximum Local Groups	512
	Maximum Shared Folder	512
	Maximum Shared Folder Sync Tasks	12
Hybrid Share	Maximum Hybrid Share Folders	15
Hyper Backup	Folder and Package Backup	✔️
	Entire System Backup	✔️
	Notes	Full-system backup requires DSM 7.2 or later.
High Availability	Synology High Availability	✔️
Log Center	Syslog Events per Second	3,000
Virtualization	VMware vSphere	ESXi 8.0 U2, ESXi 8.0 U1, ESXi 8.0, ESXi 7.0 U3, ESXi 7.0 U2, ESXi 7.0 U1, ESXi 7.0, ESXi 6.7 U3, ESXi 6.7 U2, ESXi 6.7 U1, ESXi 6.7, ESXi 6.5 U3, ESXi 6.5 U2, ESXi 6.5 U1, ESXi 6.5
	Microsoft Hyper-V	Windows Server 2022
	Citrix XenServer	XenServer 8, Citrix Hypervisor 8.2 LTSR CU1
	OpenStack	Cinder
General Specifications	Supported Protocols	SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
	Supported Browsers	Chrome Firefox Edge Safari
	Supported Language	English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
	Notes	For an updated list of supported browser versions, check the DSM Technical Specifications.
Add-on Packages view the complete package list
Central Management System	✔️
Synology AI Console	Third-Party AI Model Integration	✔️
	Maximum De-Identification Rate	340 words per second
	Notes	De-identification performance measurement: Filters for Credit Card Numbers, IBAN, Individual Taxpayer Identification Number, SSN, and Names applied to a 4,355-word English text. To enable de-identification, your device must have at least 8 GB of memory and Container Manager installed.
Synology Chat	Maximum Number of Users	400
	Notes	Measured with simulated users, each with an average record of 20,000 messages, emojis, or stickers. The required server response time is below ten seconds. Models with expandable memory are tested with the maximum supported quantity installed.
Download Station	Maximum Concurrent Download Tasks	80
SAN Manager	Maximum iSCSI Target Number	64
	Maximum LUN	128
	LUN Clone/Snapshot, Windows ODX	✔️
Synology MailPlus / MailPlus Server	Free Email Accounts	5 (Additional accounts require purchase of licenses)
	Maximum Number of Users	710
	Notes	The suggested maximum number of users is based on the following workload: 20% of users with a 20,000 item mailbox randomly performing actions and receiving 240 emails per day, and 80% of users receiving 20 emails per day. Learn more Models with SSD support are tested with a single SSD volume. Models with expandable memory are tested with the maximum supported quantity installed. Learn more about memory requirements. Operating in high-availability mode will incur additional overhead. Features enabled during evaluation: anti-spam, anti-virus, DNSBL, greylist, content scanning, and full-text search (English).
Media Server	DLNA Compliance	✔️
Synology Photos	Facial Recognition	✔️
	Object Recognition	✔️
Snapshot Replication	Maximum Snapshots per Shared Folder	256
	Maximum of System Snapshots	4,096
Surveillance Station	Default Licenses	2 (Additional cameras require purchase of licenses)
	Suggested Maximum IP Cameras and Total FPS (H.264)	1080p: 75 channels, 2100 FPS 3M: 75 channels, 1500 FPS 5M: 75 channels, 900 FPS 4K: 55 channels, 550 FPS
	Suggested Maximum IP Cameras and Total FPS (H.265)	1080p: 75 channels, 2250 FPS 3M: 75 channels, 2250 FPS 5M: 75 channels, 1500 FPS 4K: 75 channels, 900 FPS
	Notes	Performance figures are obtained from testing conducted with the device fully populated with drives, with their default memory configuration, and under a continuous recording setup. Actual system capabilities may vary based on configuration, drive performance, enabled features, and the presence of additional workloads. Use NVR Selector to quickly find a suitable model based on your requirements. The number of streams that can be viewed simultaneously is twice the suggested maximum number of cameras. For example, if the suggested maximum number of cameras for a model is 10 under H.264, 1080p, the model can support up to 20 streams of the same specification at the same time.
Synology Drive	Maximum Number of Users	610
	Maximum Number of Hosted Files	5,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
	Notes	The suggested maximum number of users is based on the following workload: 20% of users randomly perform file operations (upload, download, move, and delete), and 80% of users are logged in but idle. Learn more Models with SSD support are tested with a single SSD volume. Models with expandable memory are tested with the maximum supported quantity installed. Exceeding the recommended numbers above will not block application operations, but may result in longer response time. Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.
Synology Office	Maximum Number of Users	590
	Notes	The suggested maximum number of users is based on the following workload: 20% of users are executing random actions at an average of 30-second intervals, and 80% of users are logged in and viewing a file. Learn more Models with SSD support are tested with a single SSD volume. Models with expandable memory are tested with the maximum supported quantity installed. Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Virtual Machine Manager	Recommended Virtual Machine Instances	8 (Learn more)
	Recommended Virtual DSM Number (Licenses required)	8 (including 1 Free License)
	Notes	The specifications vary depending on system configuration and memory size.
VPN Server	Maximum Connections	12
